Product ID: | 80-10007-01 |

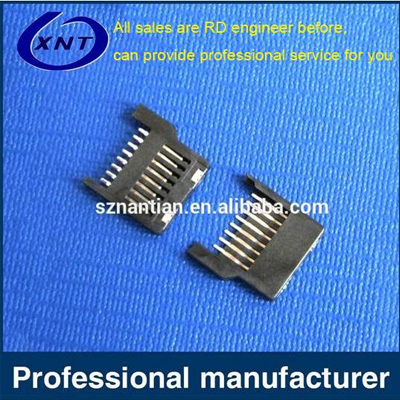

product name: | TF/microSD push pull (H=1.93mm) |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Note: | Push pull type L12.16*W11.80*H1.93 |
Product Category: | microSD TF SD Series |
Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 50V AC/DC
3. Operating temperature: -20°C ~ +85°C
4. Storage temperature: -20°C ~ +85°C
5. Contact resistance :50m ohms max.
6. Insulation resistance: 500M ohms min./500VDC
7. Durability: 5000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones and tablet computers. Navigators, LCD TVs, automobiles, smart wearable devices, aeronautical fields, etc.;
2. Inspection procedures for secondary products: IQC feed inspection--> storage--> pre-line self-test--> IPQC inspection--> FQC Final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> Automated assembly terminal -> Electrical test -> Flatness test -> Appearance test -> FQC test - -> Storage
