Product ID: | XNT-MICRO5PX0086 |

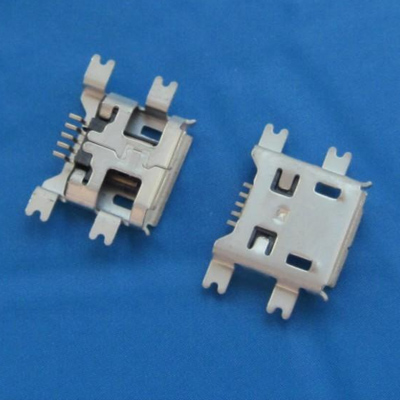

product name: | microUSB B type Sink 0.7mm SMT Enclosure SMT with Flanged |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel |
Product Note: | B type female head, sinking plate 0.7mm, terminal SMT type housing SMT type with flanged edge L11.10*W7.50*H2.94 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 0.5A (2 & 3 & 4 pin) / 1.8A (1 & 5Pin)
2. Operating temperature: -20 °C ~ +85 °C
3. Storage temperature: -20 °C ~ +85 °C
4. Contact resistance: 30m
Ohms max. 5. Insulation resistance: 1000M ohms min./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability times: 10000 times
8. Product temperature resistance: 245±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting mold -> assembled shell -> riveting shell -> electrical inspection -> pressure Inspection-->Flatness test-->Positive test-->Appearance test-->FQC test-->Storage
