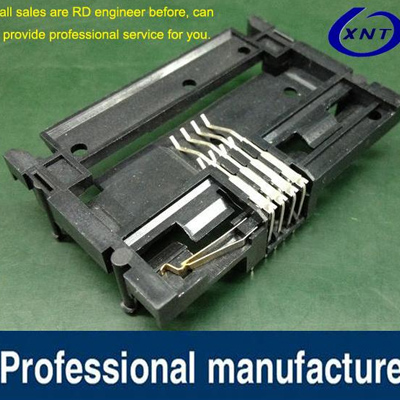

IC card holder with detection terminal without harpoon

  • category:smart card Series

  • The number of clicks:
  • Release date:2018/06/22
  • Inquiry
details
Product ID:
XNT-SC-805-081145A
product name:
Smart card drawing 8pin IC card with detection terminal without harpoon
specification:
Plastic: black high temperature UL94V-0; terminal: copper alloy;
Product Note:
Push-pull with CD terminal, SMT type
Product Category:
Smart card series


Technical parameters:
1. Rated current: 1.0A max
2. Rated voltage: 50V AC/DC
3. Operating temperature: -40°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance: 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability times: 50000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in POS machines, set-top boxes, tablet computers, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product Inspection process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - ->Assembled terminal-->Electrical inspection-->Flatness test-->Positive test-->Appearance test-->FQC test-->Imported



XNT-SC-805-081145A.pdf
