Product ID: | MICRO05PCB095L7PK |

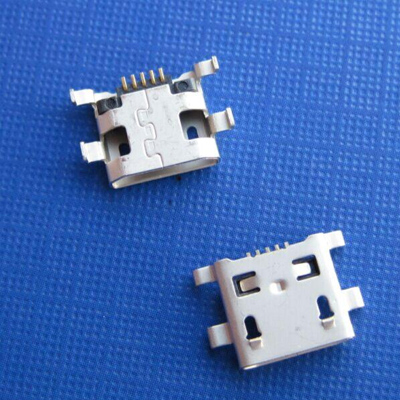

product name: | microUSB B type 5pin sink 0.95mm (Soldering feet: SMT, Housing: DIP) |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel |
Product Note: | B type female connector, terminal SMT type housing DIP type sink type L7.50*W7.00*H2.45 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 0.5A (2 & 3 & 4contacts) / 1.8A (1 & 5contacts)
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 30m ohms Max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstanding voltage: 250V AC for 1 minute
7. Durability times: 10000 times
8. Product temperature resistance: 260±5°C 10S
9. RoHS Compliant
:
1. Connectors are widely used in mobile phones, tablet PCs, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC Final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine molding -> assembled shell -> riveted shell -> electrical inspection -> pressure test -->Flatness test --> Positive test --> Appearance test --> FQC test --> Store
