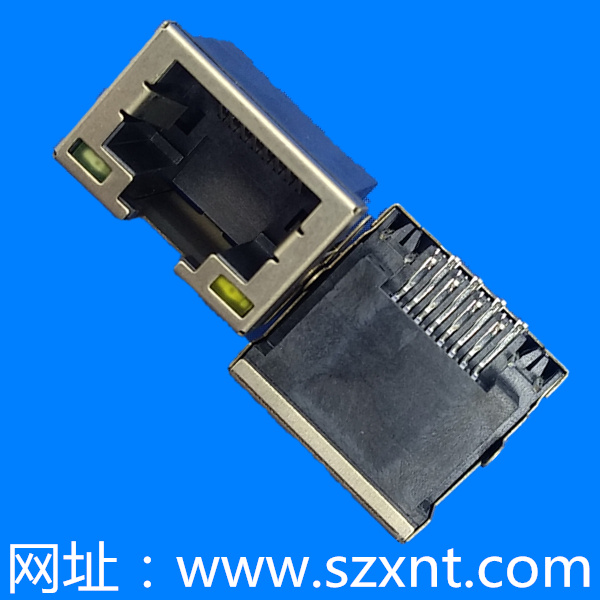

Product ID: | XNT-10A2X2000R RJ45 |
product name: | RJ45 Sink type |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Category: | RJ45 Series |
Technical parameters:
1. Rated current: 1.0A
2. Contact resistance: 50m ohms max.
3. Withstand voltage: 500V AC min.
4. Insulation resistance: 1000M ohms min./500VDC
5. Durability: 5000 times
6. Product resistance Temperature: 245±5°C 10S
7. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> Storage -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal -> electrical Inspection-->pressure test-->hole inspection-->appearance inspection-->FQC inspection-->storage
XNT-10A2X2000R RJ45 沉板4.2 有燈 帶殼 圖紙 Model (更新).pdf
